Drone Payloads: Airframe-Agnostic UAS Effectors

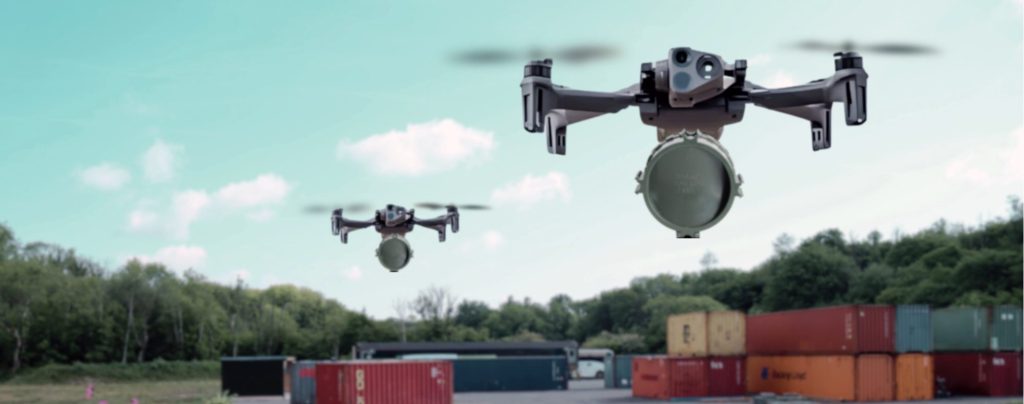

Alford Pluton shaped charge attached to a drone via picatinny collar

Alford has designed and manufactured shaped charges since 1985. Pluton™, Magma™, and Krakatoa™ are established products, in service with EOD teams and combat engineers.  We have now adapted them for drone deployment, using a Picatinny mounting collar.

This isn’t a new family of products. It’s a new way to deliver charges we already make, test and support.

The Charges

Pluton

Pluton shaped charge with a picatinny collar

A user-filled shaped charge for high- and low-order UXO disposal and buried IEDs. Full Pluton details



Magma

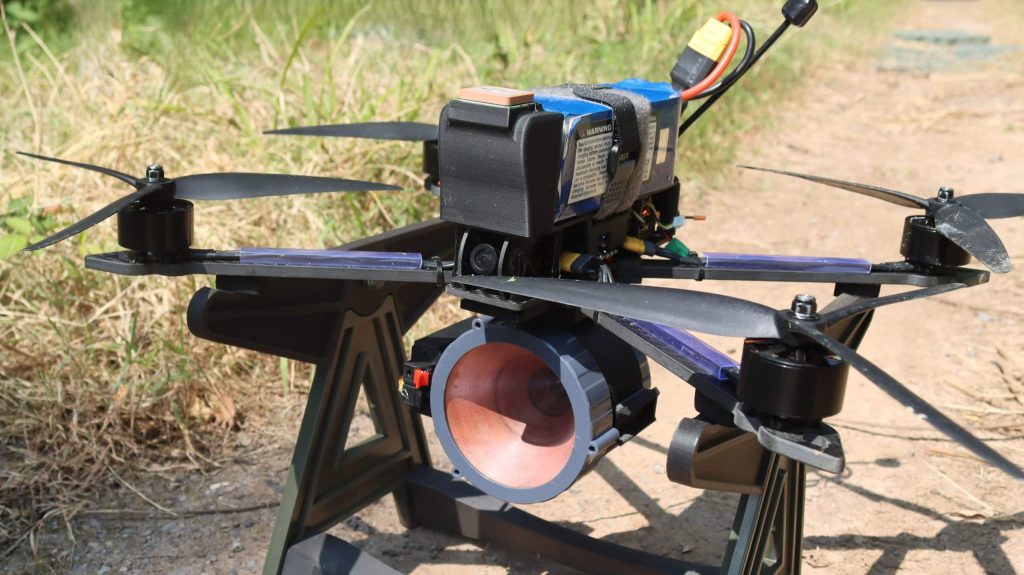

Magma shaped charge loaded with a copper projectile

A larger user-filled shaped charge, carrying up to double Pluton’s load, for thick-cased munitions and buried IEDs. Full Magma details



Krakatoa

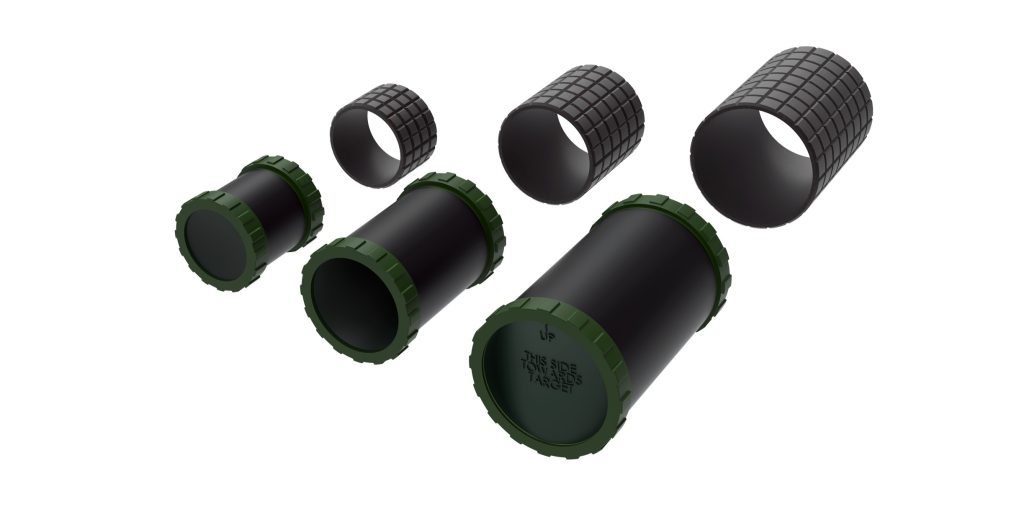

Alford Krakatoa SB shaped charge

A user-filled charge container system with three projectile variants for defensive, demolition and EOD operations. Full Krakatoa details



Picatinny Collar

Picatiny collars to enable Pluton and Magma shaped charges to be attached to drones via standard Picatinny interface



Technical overview

Pluton™Magma™Krakatoa™
NEQ250-300 g PE100-600 g PE350-500 g PE
Filled charge weight0.415-0.465 kg0.36-0.8 kg0.856-0.940 kg
Weight inc. collar0.438-0.488 kg0.387-0.827 kg0.883-0.967 kg
Height x diameter173mm x 81.25mm205mm x 94mm160mm x 121mm
Projectile optionsCopper JFC, magnesium JFC, magnesium HP JFC, copper EFPCopper JFC, magnesium JFC, copper EFPCopper JFC, copper EFP, Gladius fragmenting projectile



Projectiles

ProjectileTarget/Application
Copper JFCDesigned for optimal armour penetration
Magnesium JFCExplosive digging through normal ground and permafrost. Thick-cased and buried targets
Copper EFPStand-off attack. Effective against targets beneath a net
Magnesium EFPConcrete structures and fuel facilities
Gladius fragmentingThin-skinned targets, including vehicles, aircraft, and various types of factory and IT equipment



Engineering, testing and qualification

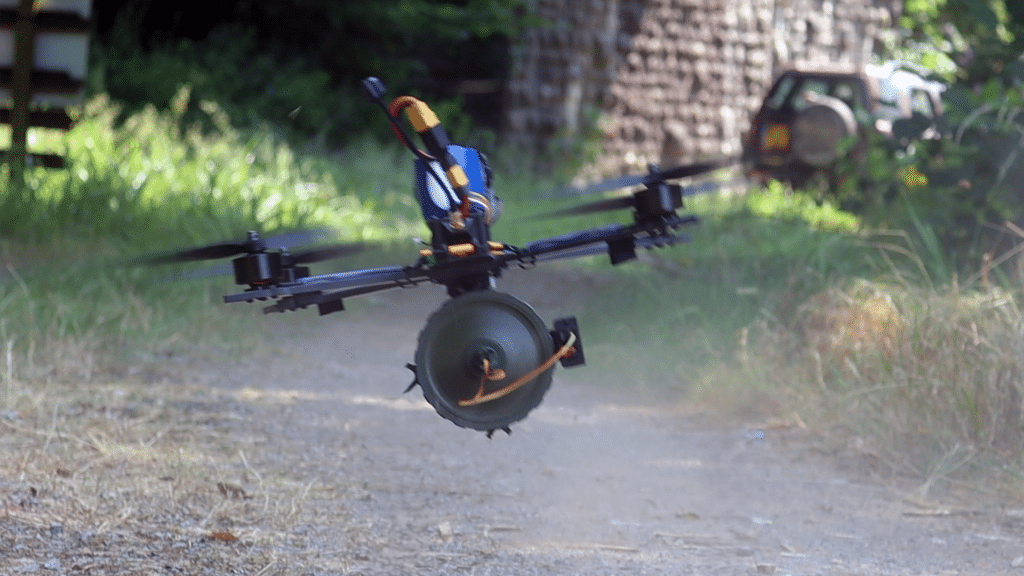

A drone equipped with an Alford shaped charge takes flight

Pluton, Magma, and Krakatoa are designed, manufactured and tested in-house, with live testing on our own ranges at Broadmead and Emborough.

The collar uses a standard Picatinny interface.

Our charges are proven, but a new drone configuration still needs to be qualified in its own right. We’ll work with you to agree the testing your platform requires.



Why Alford

Experience: shaped charge design and manufacture since 1985

In-house manufacturing: design, production and testing under one roof, with no subcontract chain

Technical support: our Tech Team advises on configuration, filling and integration



Frequently asked questions



Do you supply complete drone systems?

No. Alford supplies the charge and the Picatinny collar. You choose the drone.



Which drones are compatible?

The collar uses a standard Picatinny interface. Tell us what you fly and we’ll advise.



What happens when we change drones?

The charges and collar move to the new airframe. Operator training, familiarity and stock all carry over.



Who fills the charges?

All charges are user-filled in-country, so they ship and store without explosive content.



How are export and end-user requirements handled?

All enquiries are subject to UK export controls and end-user verification.

To discuss drone deployment of Pluton, Magma & Krakatoa
