kiT-X – The Global Hazard Marking Solution
A Standardised Ground Threat Marking & Assessment Capability
kiT-X is a next-generation, All Arms and Specialist marking system designed to enable safe movement, clear warning, and informed decision-making in explosive and non-explosive hazard environments. It supports military forces, security services, humanitarian organisations, and local populations operating in contaminated areas.
Modular, terrain-adaptive, and role-tailored, kiT-X functions across deserts, snow, dense vegetation, rubble, and conflict-damaged urban terrain. Users carry only what they need from a combined, interoperable system, enabling teams to mark, avoid, move, and protect others without delay, improvisation, or reliance on immediate specialist support.
Operational Purpose
kiT-X enables clear, deliberate ground threat assessment through a standardised visual marking language.
It supports the marking of:
• explosive and non-explosive threats
• mine breaching lanes
• evidence
• unattended items
• security operations
• construction tasks
kiT-X delivers a modular, day-night, terrain-adaptive marking ecosystem designed for both All Arms and specialist users operating across warfighting, operations, Defence Engagement, and civilian environments.
Engineered for those who encounter hazards first under pressure and often without specialist support, kiT-X makes thinking visible on the ground. It integrates assessment, carriage, access, deployment, and reuse into a single interoperable system that performs when it matters most.
kiT-X does more than mark – it shapes how teams read terrain, understand risk, and make decisions, replacing improvisation with intent and fragmented signals with a shared visual language that endures.
Discover how kiT-X grew from a sapper’s idea to a globally deployed system:
The purpose is simple: save lives, maintain mobility, protect tempo, and ensure the safe movement and re-occupation of ground where hazards shape the fight
kiT-X System Components

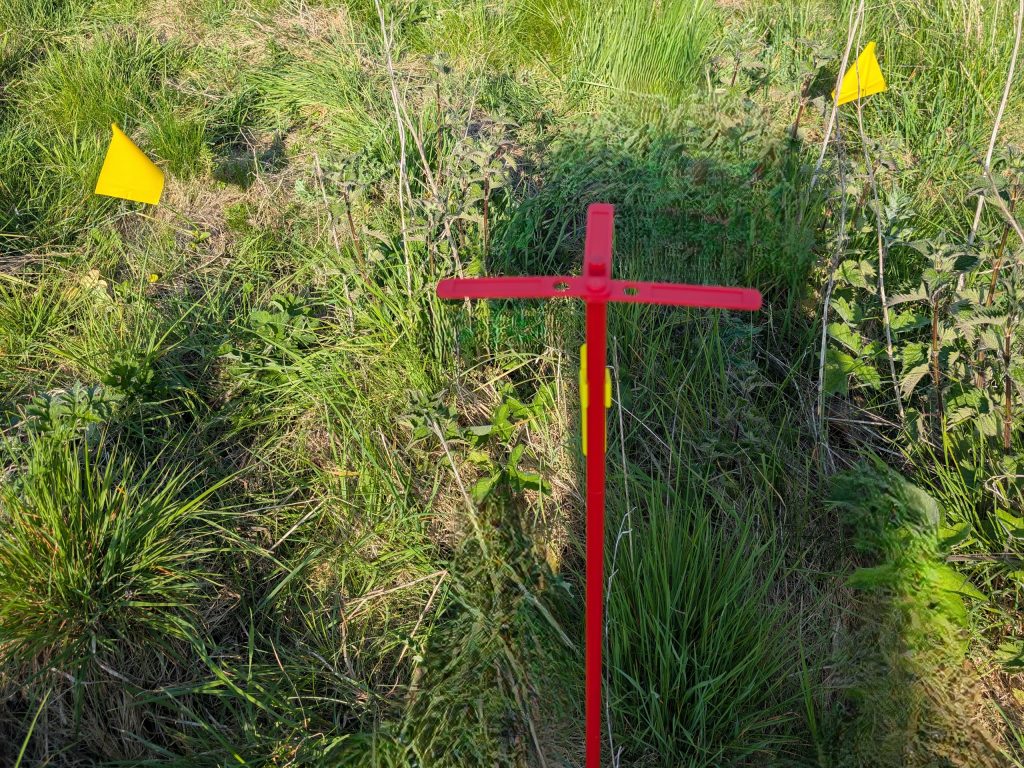

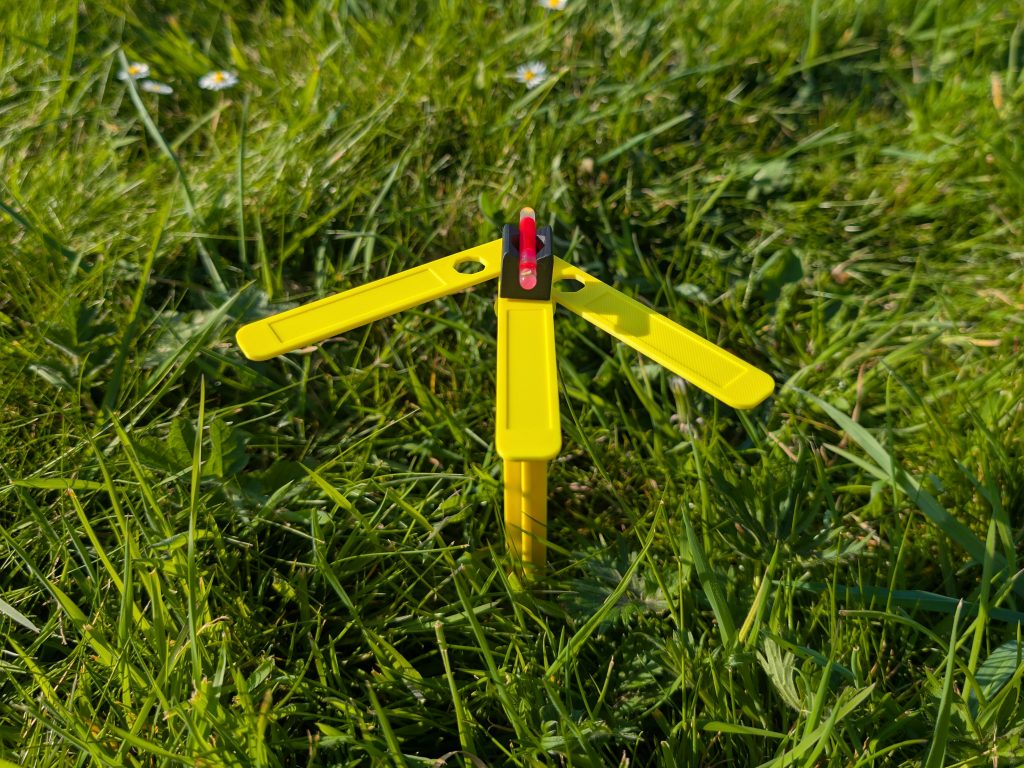

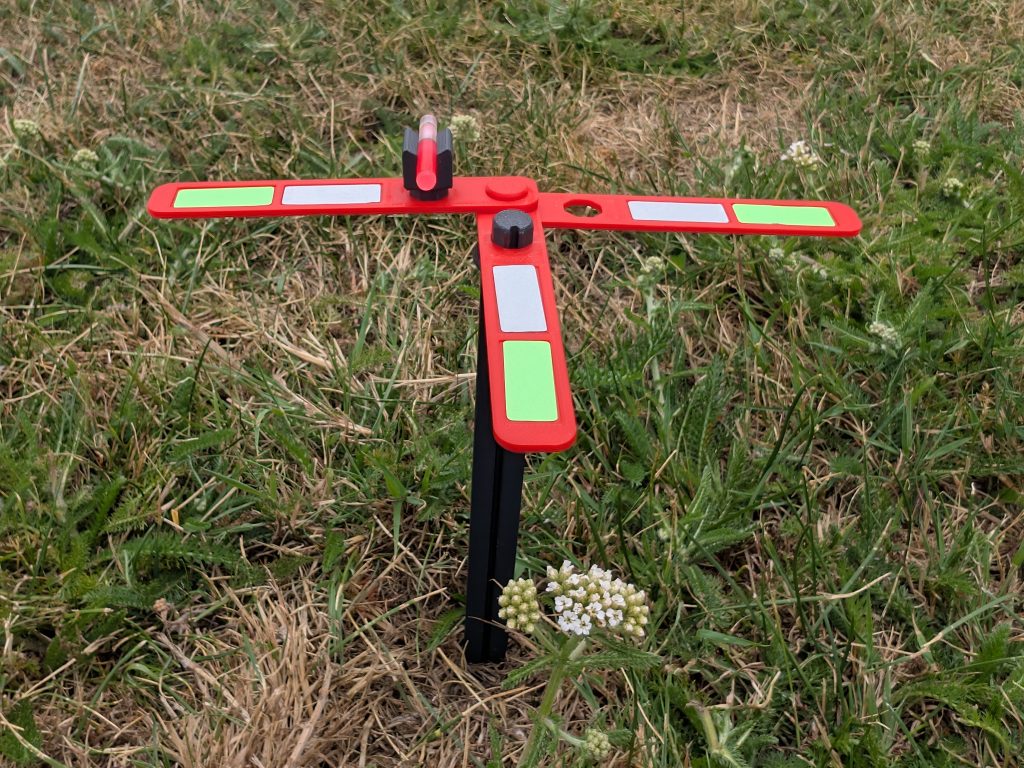

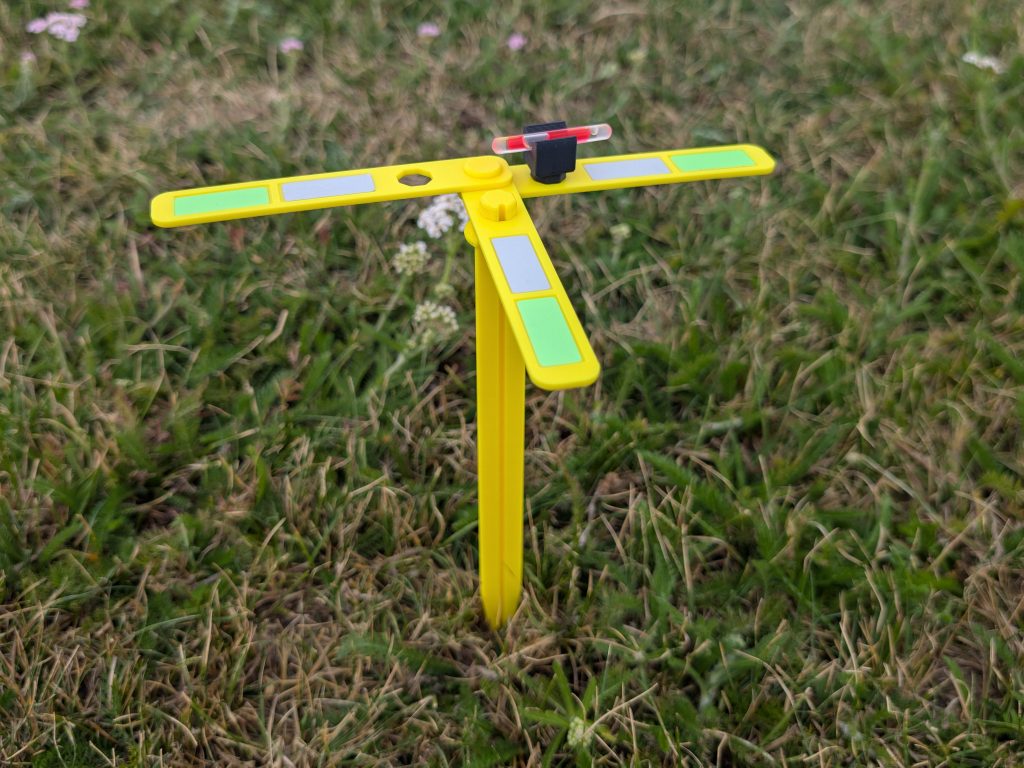

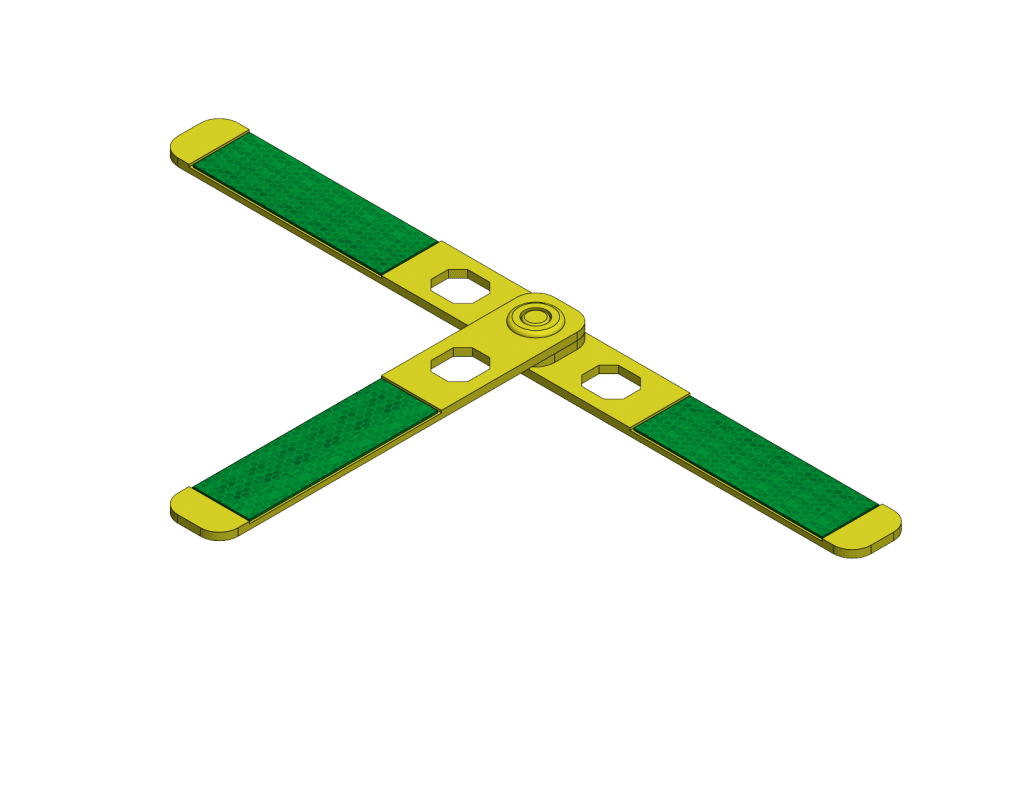

NATO T Multi-Marker
NATO T Multi Marker is a low-profile boundary and directional marker designed for clear delineation of change of direction points, linear routes, and safe lanes in urban and open terrain.

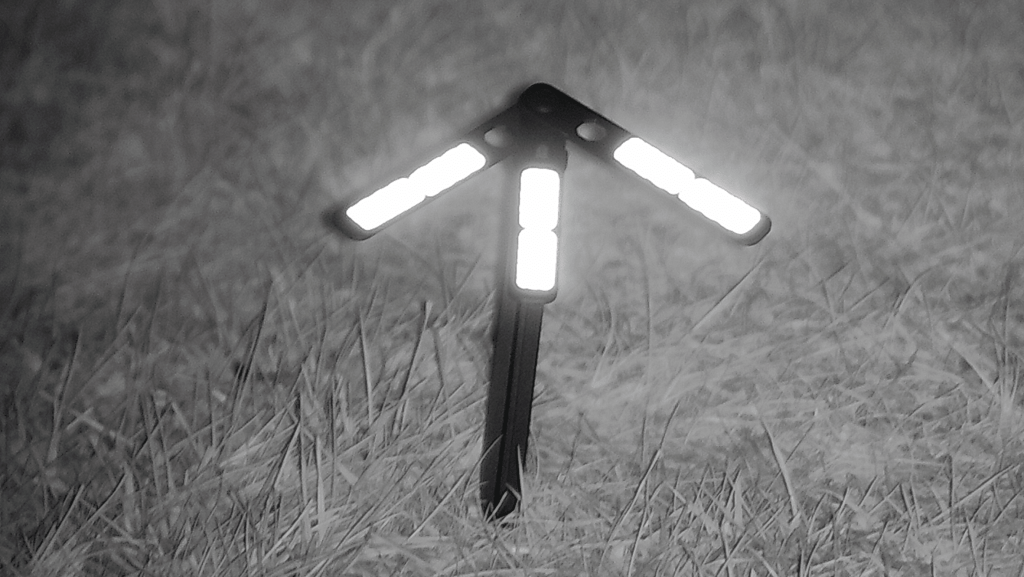

Fully compatible with kiT-X flag markers, Cyalume® light sticks (visible and IR), and phosphorescent components, it offers a multifunctional,
terrain-adaptable solution that consolidates multiple marking roles into one compact tool.
Variants: yellow | white | red | TAC (discrete, low-profile)

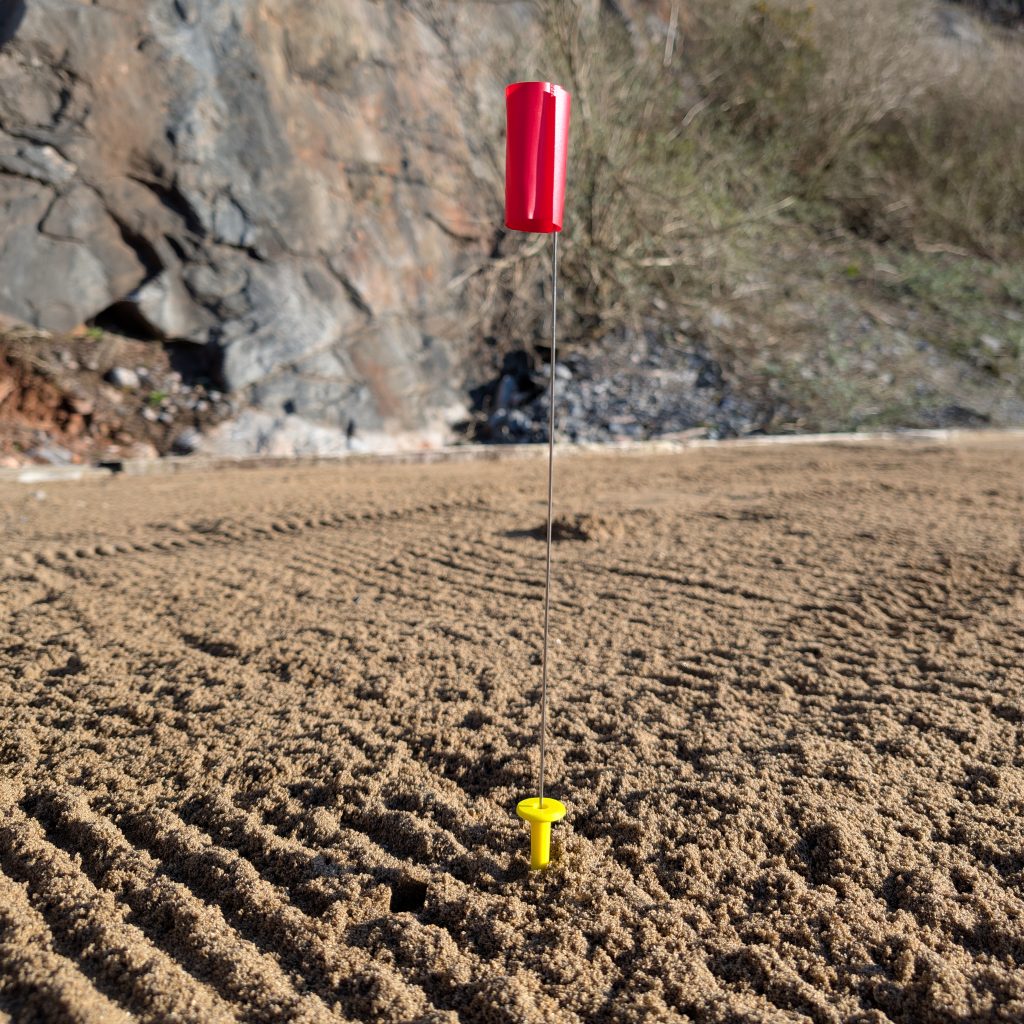

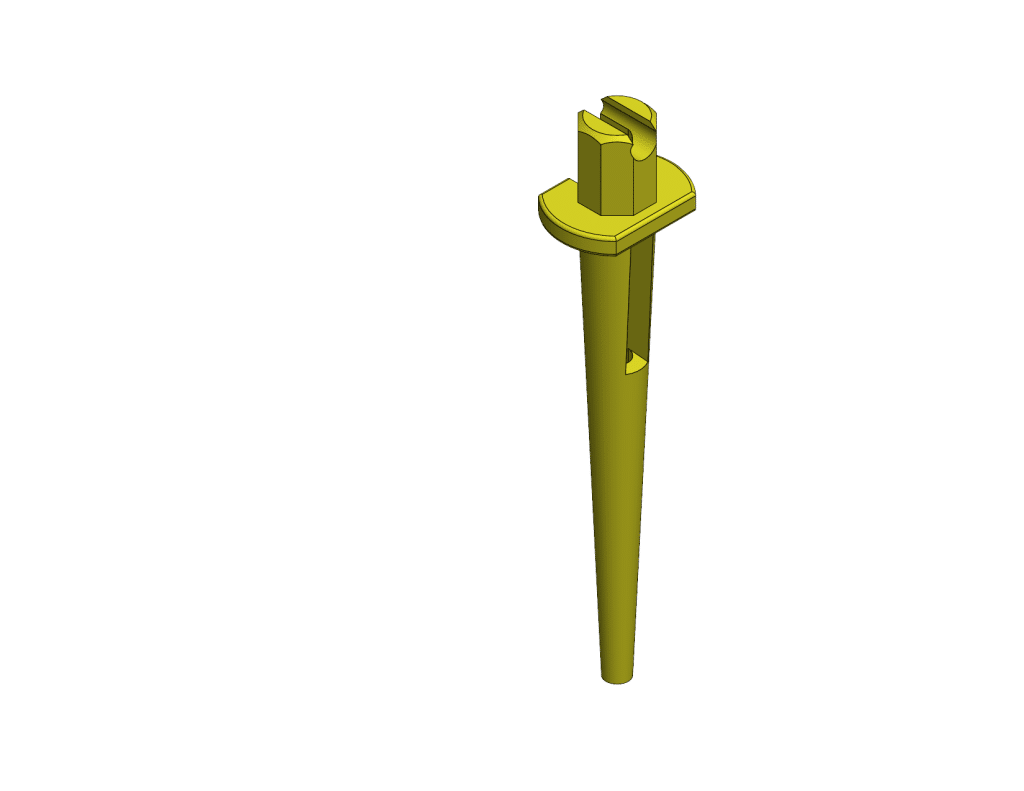

Compact Pin Marker
This pin and holder secures flags, infrared chemiluminescent light sticks (visible and IR), and kiT-X marking elements on various terrains. It serves as both a flag holder and an anchor, keeping markers fixed in place and reducing the need for replacements.
The thin-line pin allows operators to wedge securely into hard-packed soil, rubble, rocky surfaces, and arid ground, also delivering surface elevation for kiT-X markers.
Fully interoperable with elevation aids, all kiT-X markers, glow sticks, and flags, the Compact Pin Marker also features a strengthened edge that can serve as a hard-ground lay-down marker, window/door wedge, or a simple STOP/HALT marker. Quick to deploy, easy to recover, and a key capability enhancer within the compact personal deployment system.
Variants: Yellow | White | TAC (discrete, low-profile)

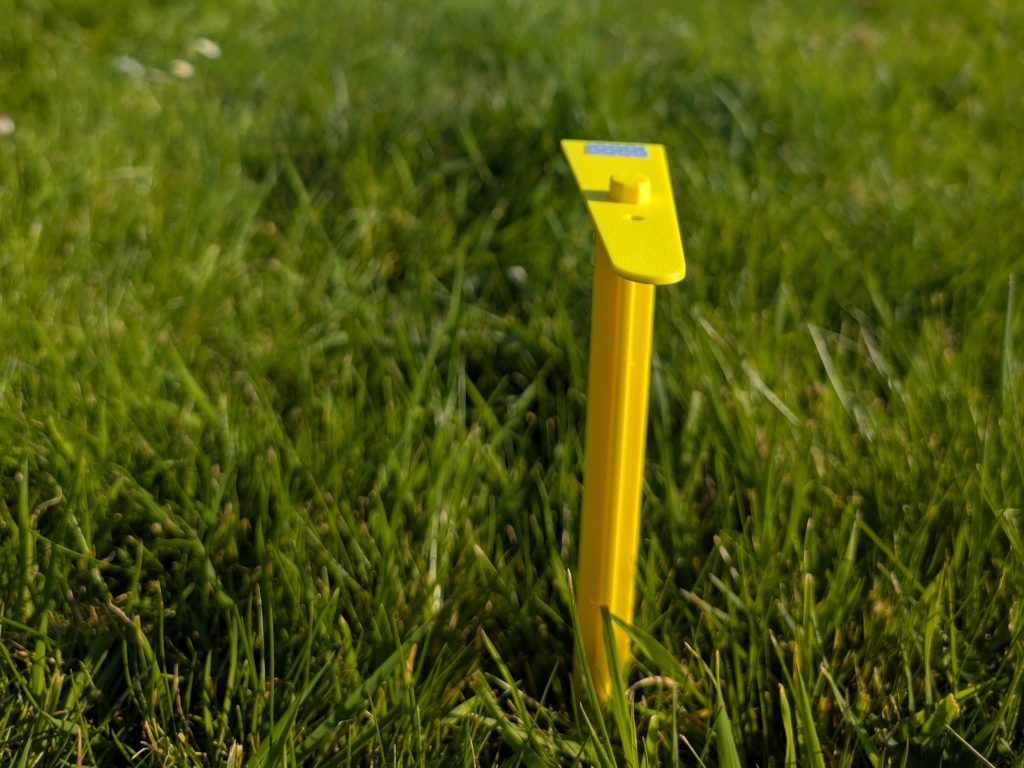

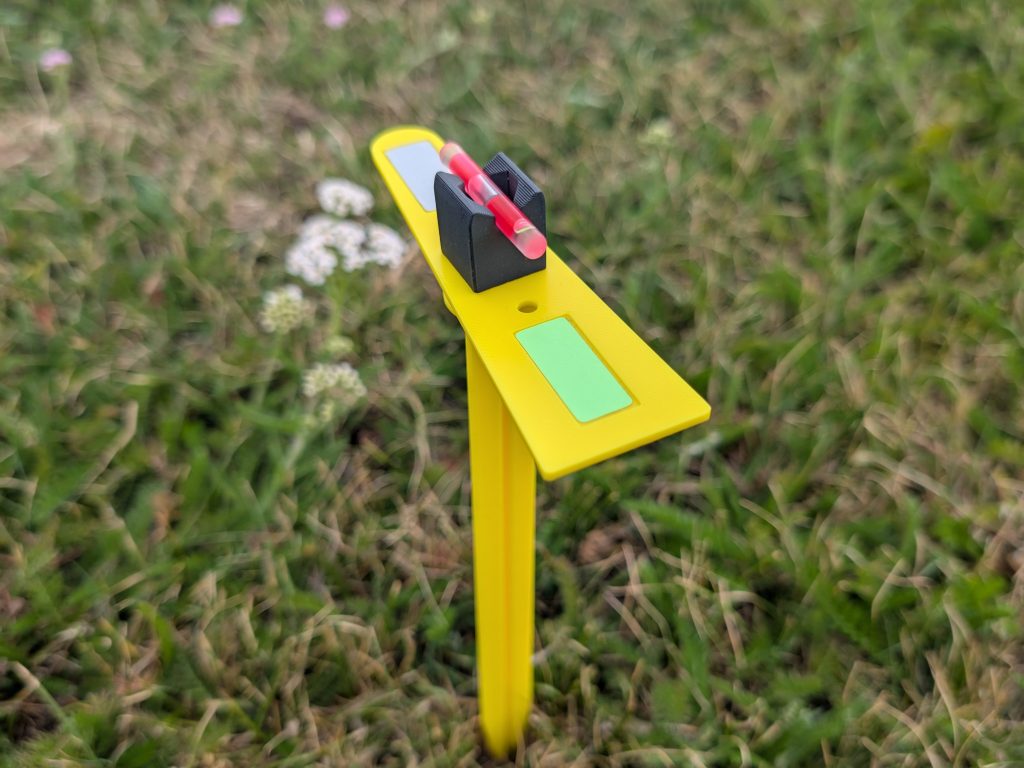

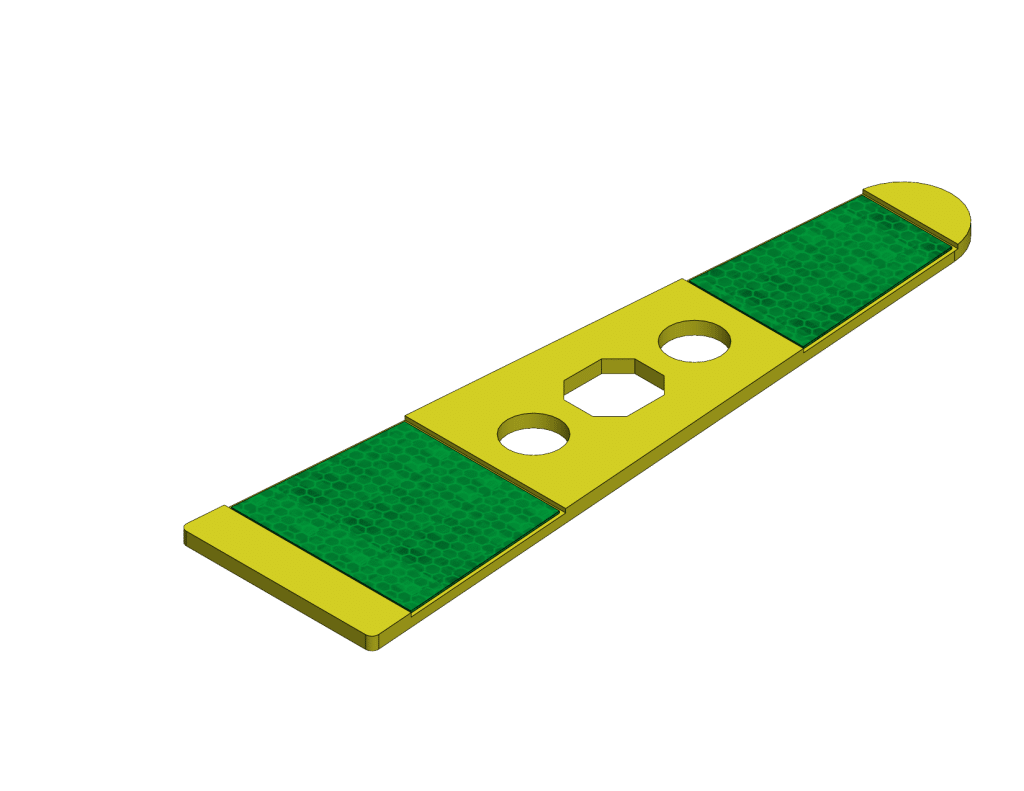

Tag Marker
A versatile, neutral directional Tag marker designed for clear, standardised marking across diverse terrain. Its tapered design enables flat storage and easy carriage for both vehicle-mounted and personal use, while increasing marker width and spread to improve visibility.
The unique shape provides shape-evident directional indication, supporting secure hazard and route marking without relying on improvised cues.
Fully interoperable with kiT-X extension aids and flag markers, the Tag Marker can be laid in directional orientations or elevated in foliage to generate a stronger signature than the Clippo marker. It supports comprehensive safe-lane marking in both urban and rural environments.
Variants: Yellow | White | TAC (discrete, low-profile)

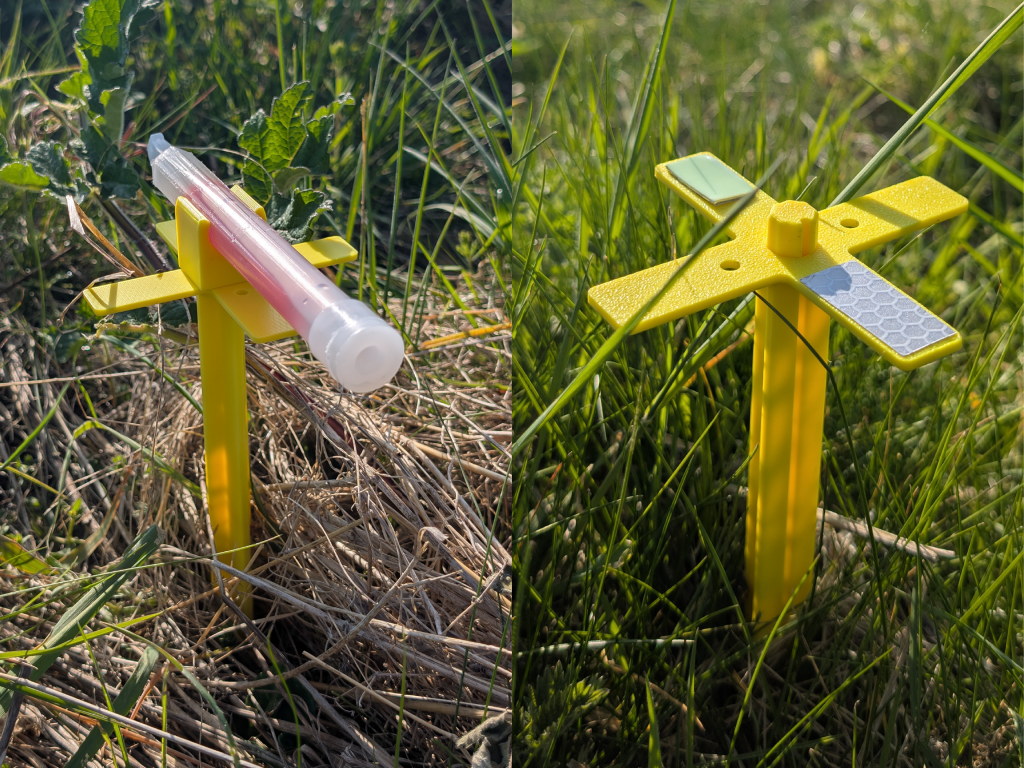

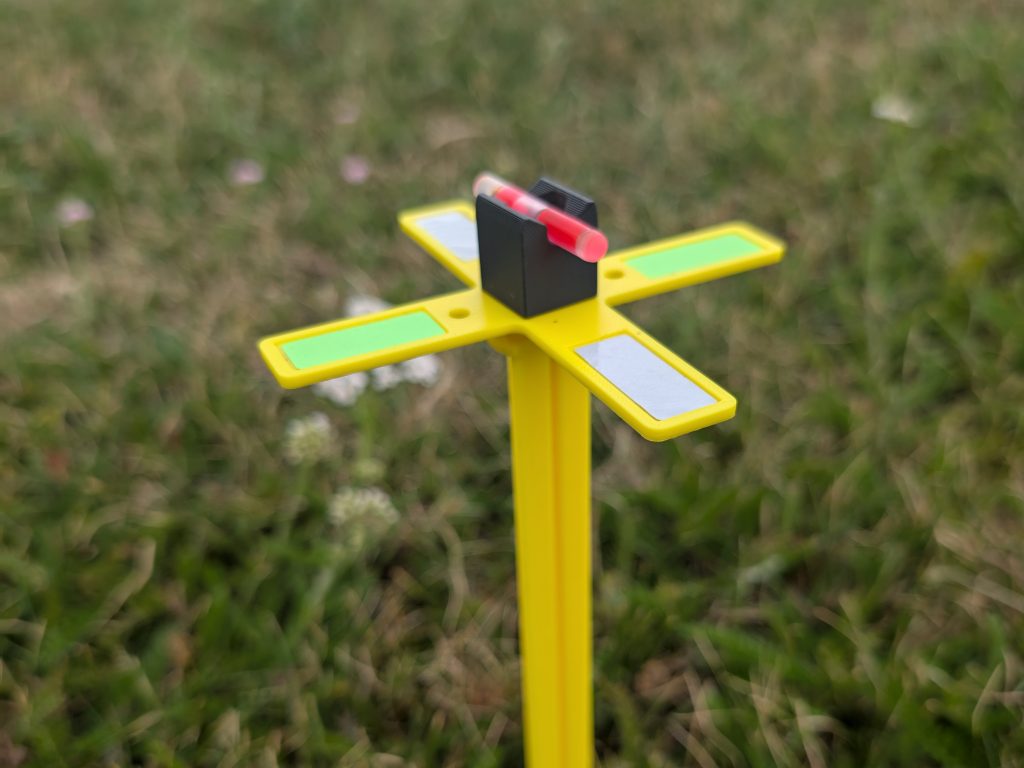

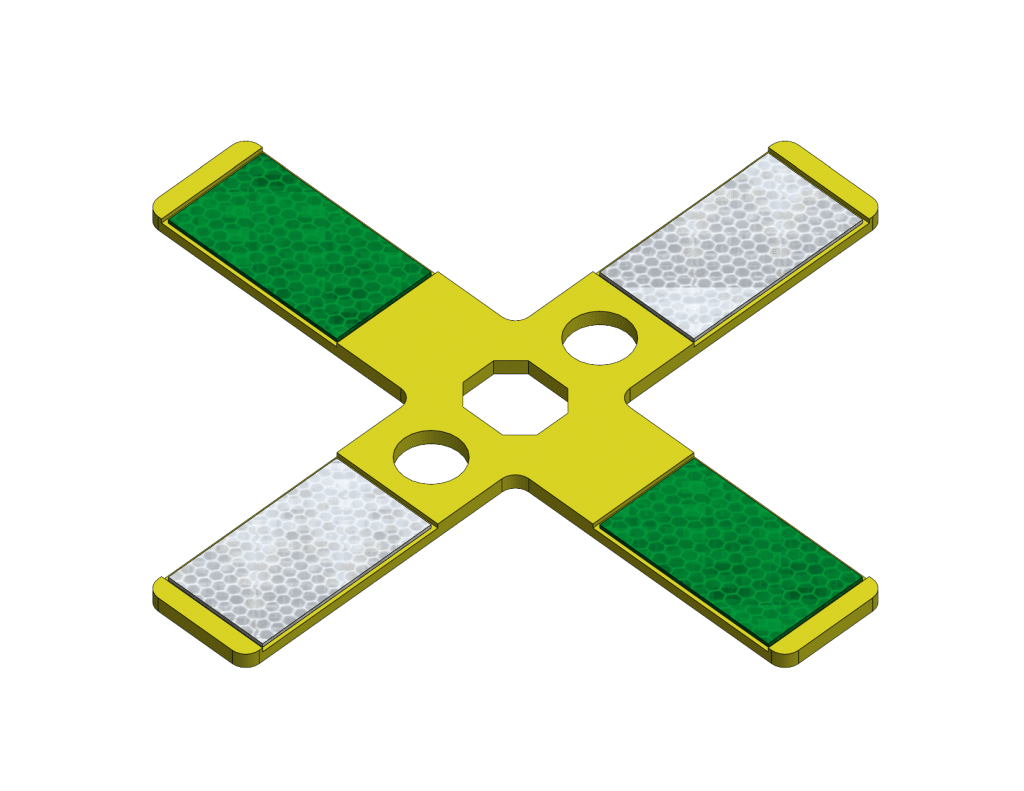

Mini X Marker
A compact, modular terrain-marking tool engineered for high visibility where traditional markers are obstructed, absorbed, or blend into the environment. Its wide X-shape spreads foliage and increases surface contrast, making it highly effective in dense vegetation, urban clutter, and snow- or frost-covered ground.
Lightweight and slimline for flat storage, it integrates with the kiT-X ecosystem and is designed for true multifunctional use: an elevated route marker, a lay-flat urban marker, a free-standing marker with extensions, or a hanging marker. Its spread footprint also helps keep users safely back from safe-lane or boundary edges, reinforcing lessons learned in victim-operated threat environments.
A must-have for poor visibility conditions, it also supports vehicle-mounted interval indication and clear marking through challenging terrain.
Variants: Yellow | White | Red | TAC (discrete, low-profile)

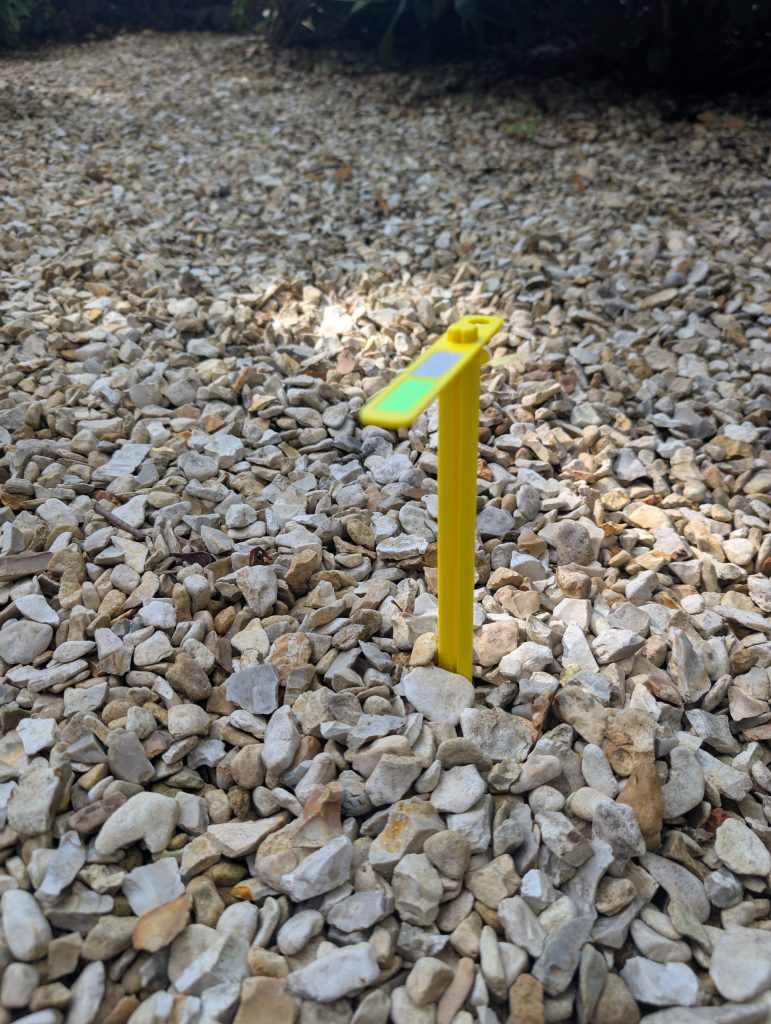

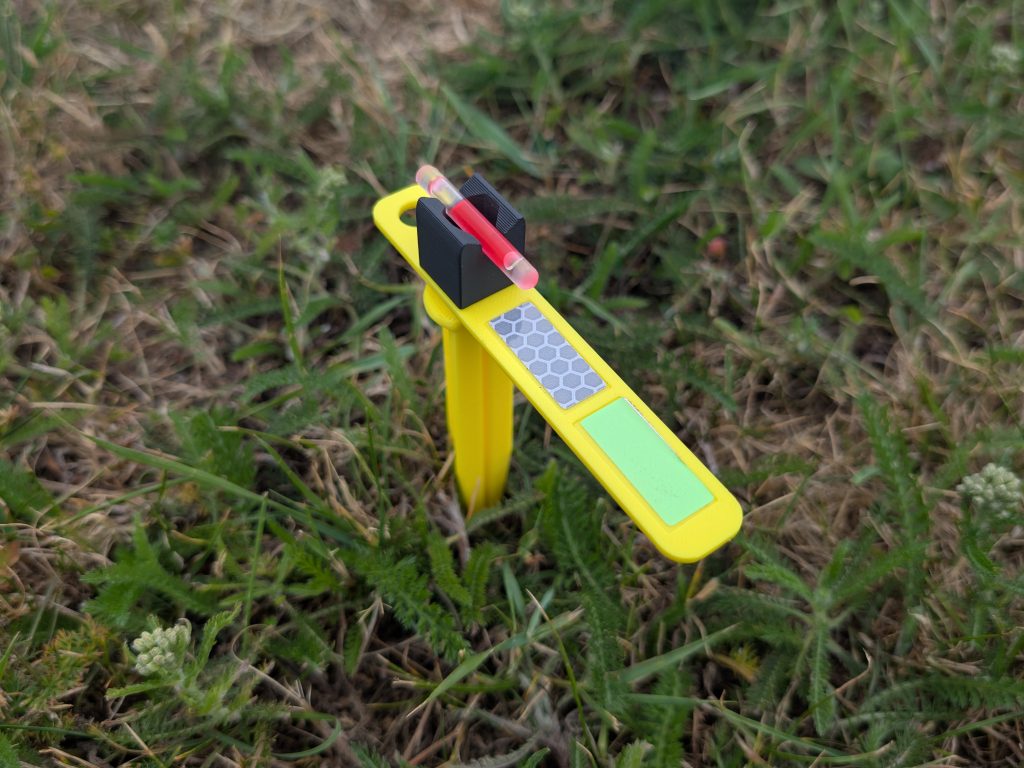

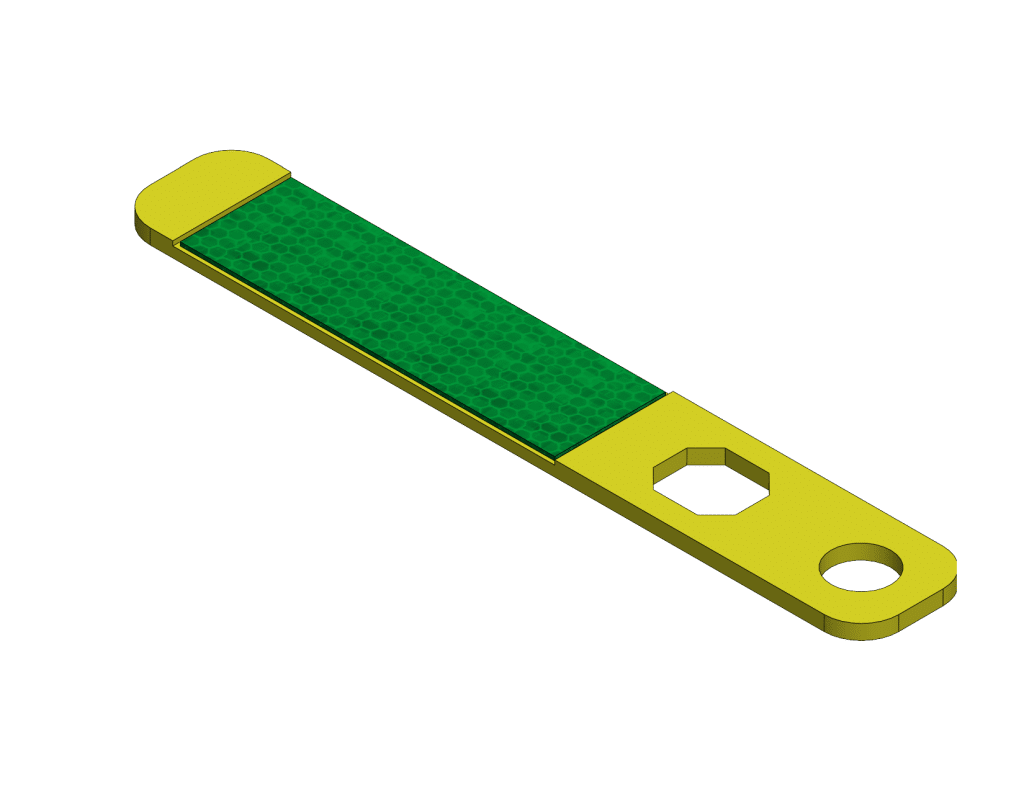

Clippo marker
A compact, flat-profile linear marking tool for rapid deployment in urban,
short terrain, or confined environments where vertical elevation is limited or undesirable. Lightweight, reusable, and fully interoperable within the kiT-X ecosystem, the Clippo Marker provides the minimum-denominator marking option – delivering a low-profile packing solution with a deliberately reduced visual signature while still communicating clear intent on the ground.
Its neutral form enables users to create a continuous, linear visual line
for safe lanes or boundaries – an unnatural pattern in the natural environment, making it eye-catching and quickly readable under pressure.
Variants: Yellow | White | TAC (discrete, low-profile)

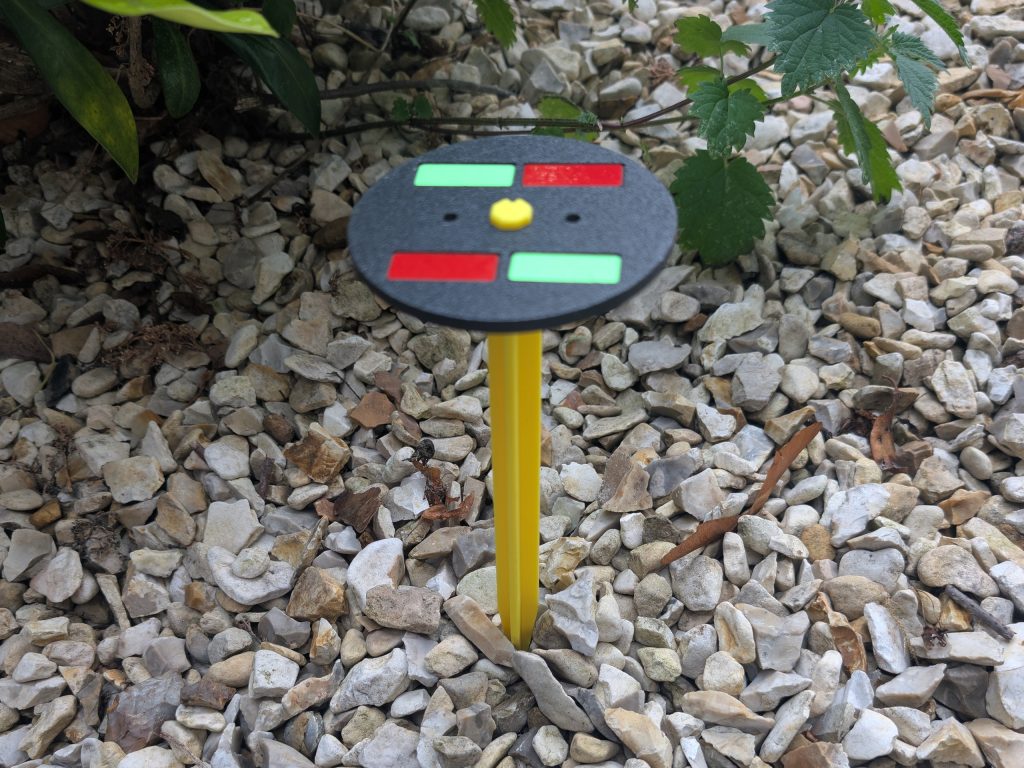

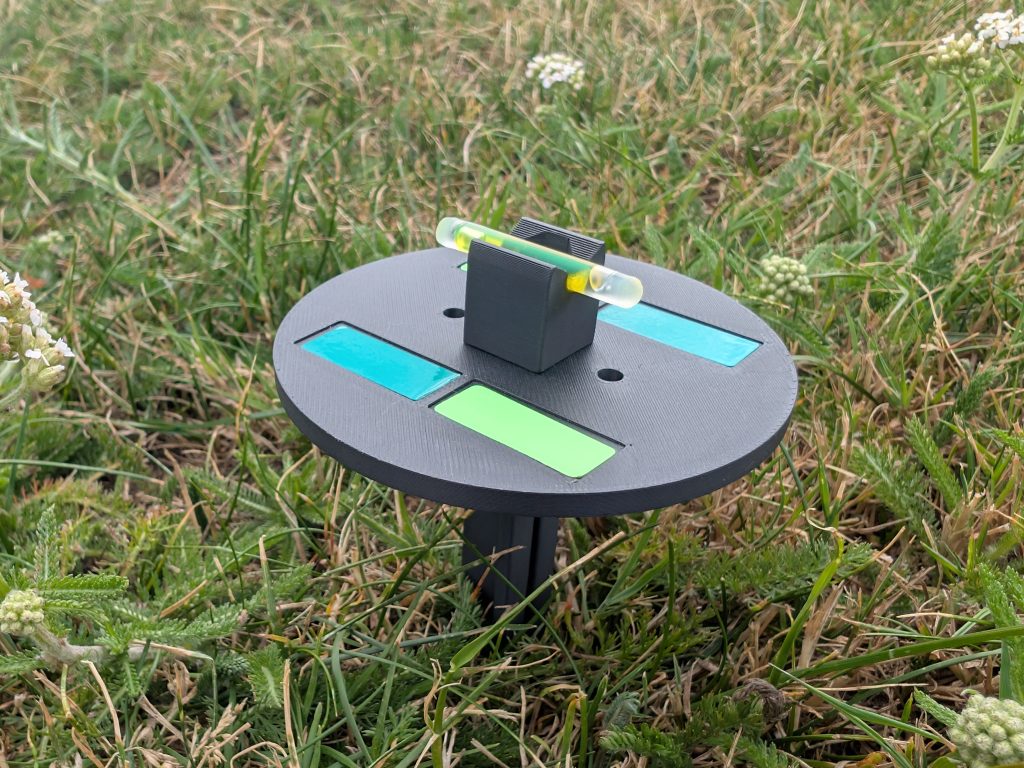

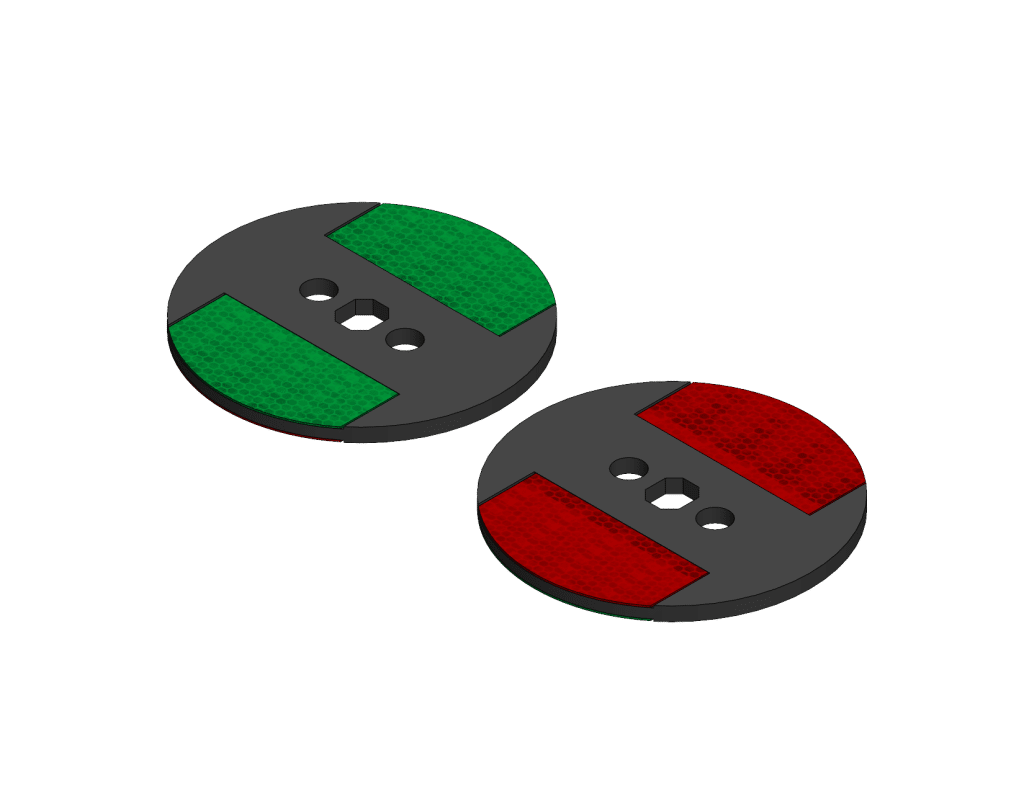

Multi Urban Marker
A weighted marker for urban sites and exposed weather. Its simple design is interoperable with the kiT-X system and marks surfaces where ground penetration is impractical or unwanted.
The Multi Urban Marker is designed for versatile use in urban environments. It supports All Arms movement, snow and ice, elevated placements, and marking entry and exit points in unoccupied structures. It also works in cleared urban areas.The flat, weighted form stays in place on hard, loose, or broken ground without being driven in.
Compatible with the full kiT-X ecosystem, it supports urban clearance, entry/exit marking, obstacle and crossing indicators, trench indicators, drone-visible elevation support, and red/green entry / no-entry control. Equipped for Infrared Chemiluminescent Light Stick compatibility (visible and IR), it functions as a neutral, tactical, or directional indicator suitable
for day and night operations.

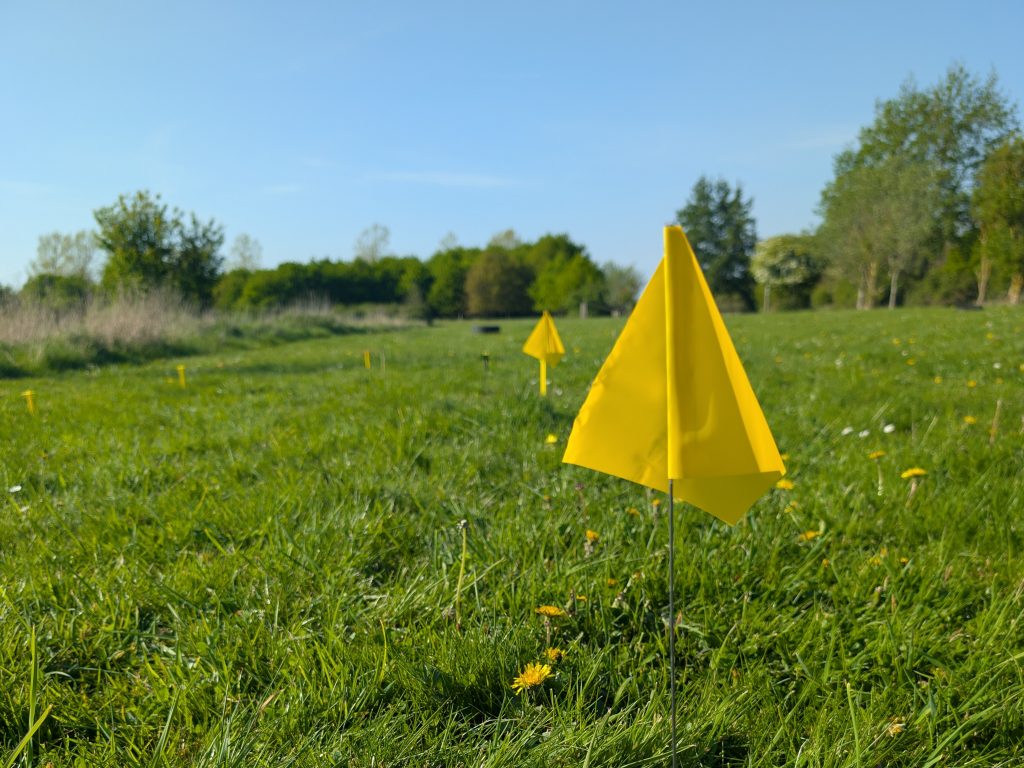

Flag Marker
kiT-X’s no-metal content flags represent a key innovation driven by end-user needs. The flag’s stem connects directly to kiT-X markers, pins, and extensions, maximising visibility and ensuring the flag remains stable and upright, even in challenging ground conditions. They elevate warning and attention at a distance while maintaining position, remaining securely in place without being forced or bent into the ground.
Unique in its durability and reusability, its distinctive shape supports immediate recognition as a hazard, risk, warning, or confirmed explosive find – reinforcing a standardised visual language.
Available in red and white, and in 200mm and 400mm lengths, the flags install securely with kiT-X pins and elevation options, and can be combined with kiT-X markers to make positions easier to identify. The raised design ensures visibility above grass, rubble, and cluttered ground where direct insertion is not practical, and allows markers to be placed, recovered, and reused.

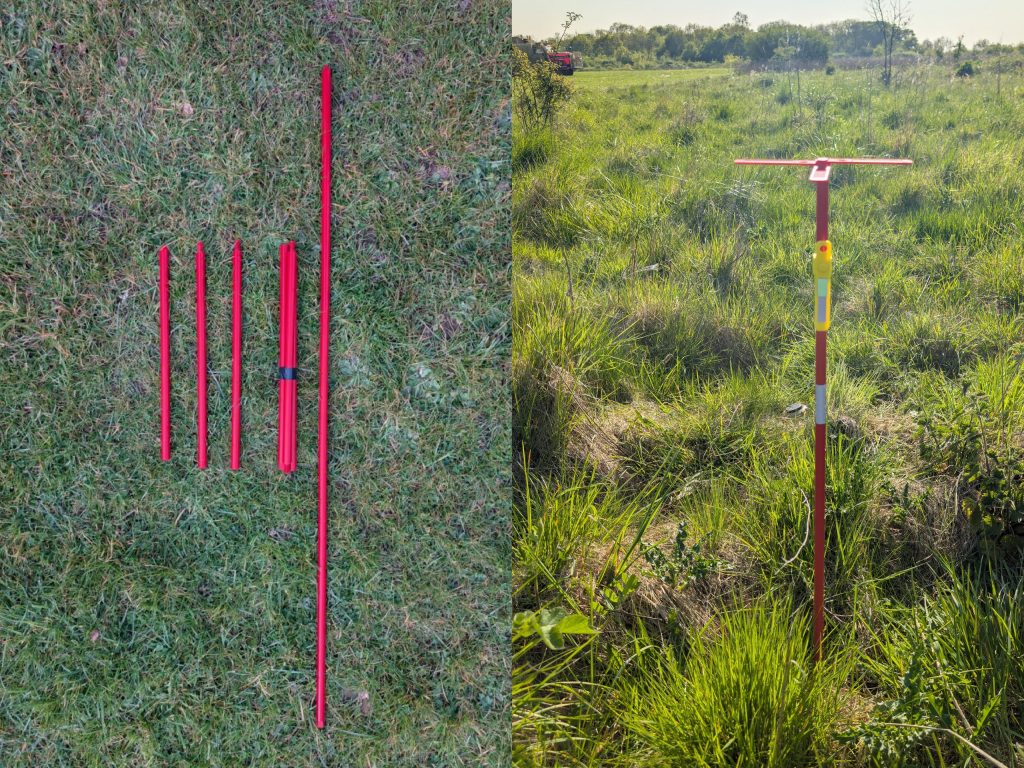

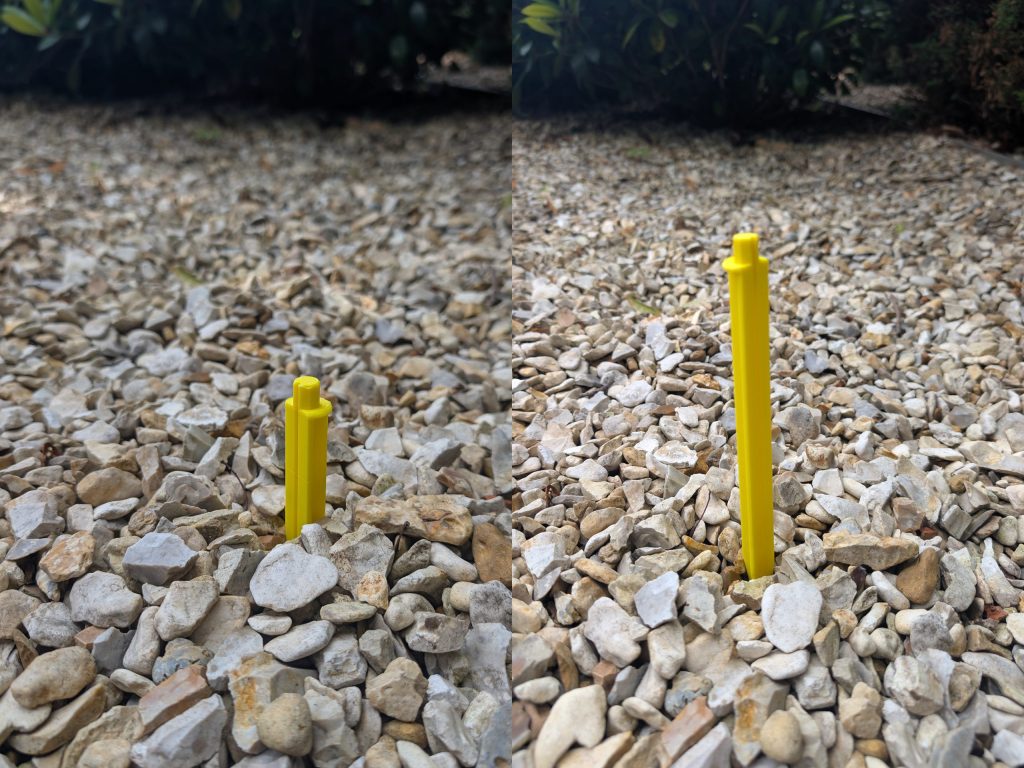

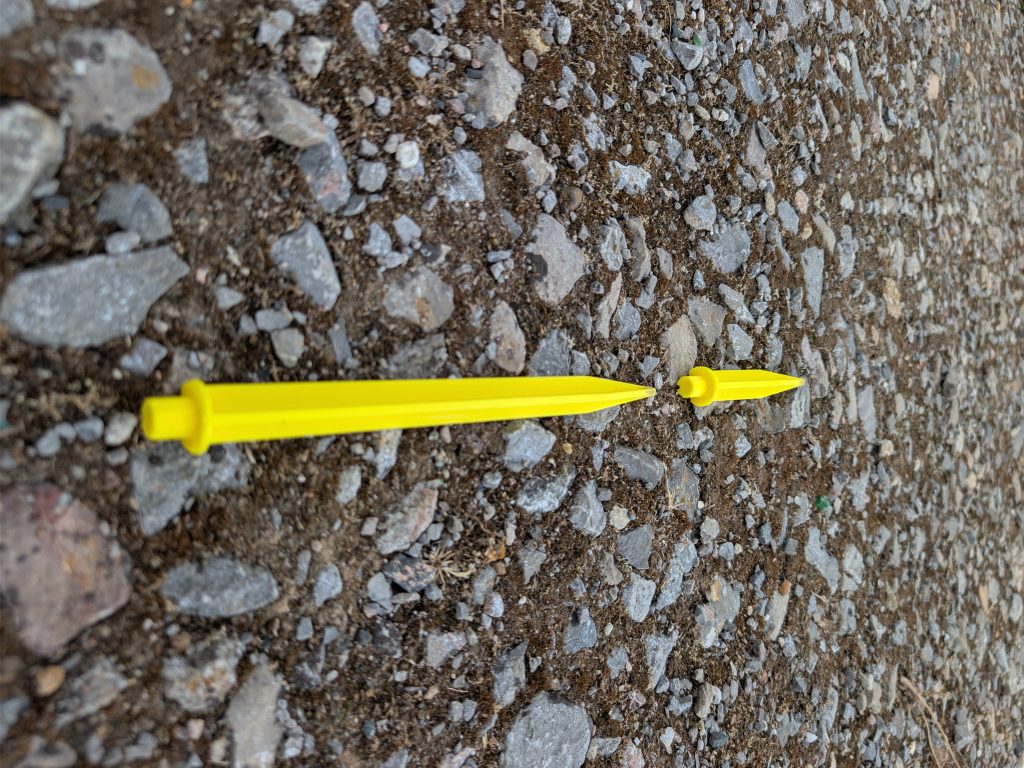

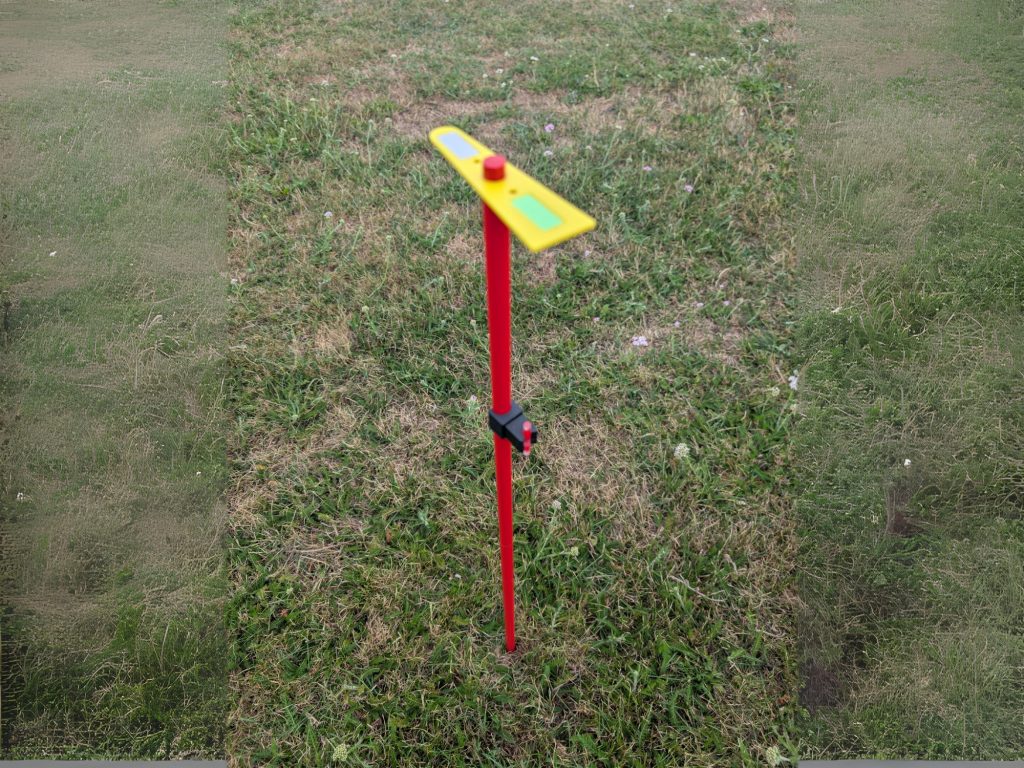

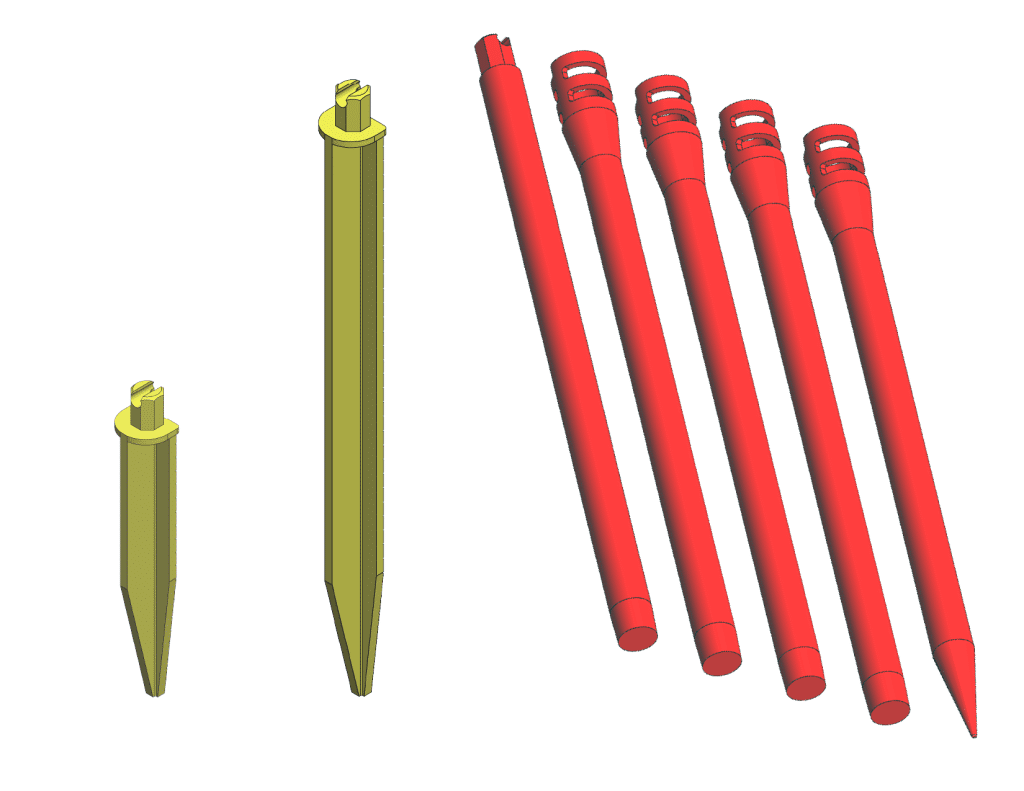

Marker Elevation
The kiT-X system features several marker elevation tools, ranging from 100mm to 1000mm.
All elevation units are modular and can be integrated with all kiT-X markers to provide robust, versatile solutions for low- and high-profile marking. Highly effective in any terrain or environmental conditions.
Variants: yellow | white | red | TAC (discrete, low-profile)
Other Components
The kiT-X system also includes:

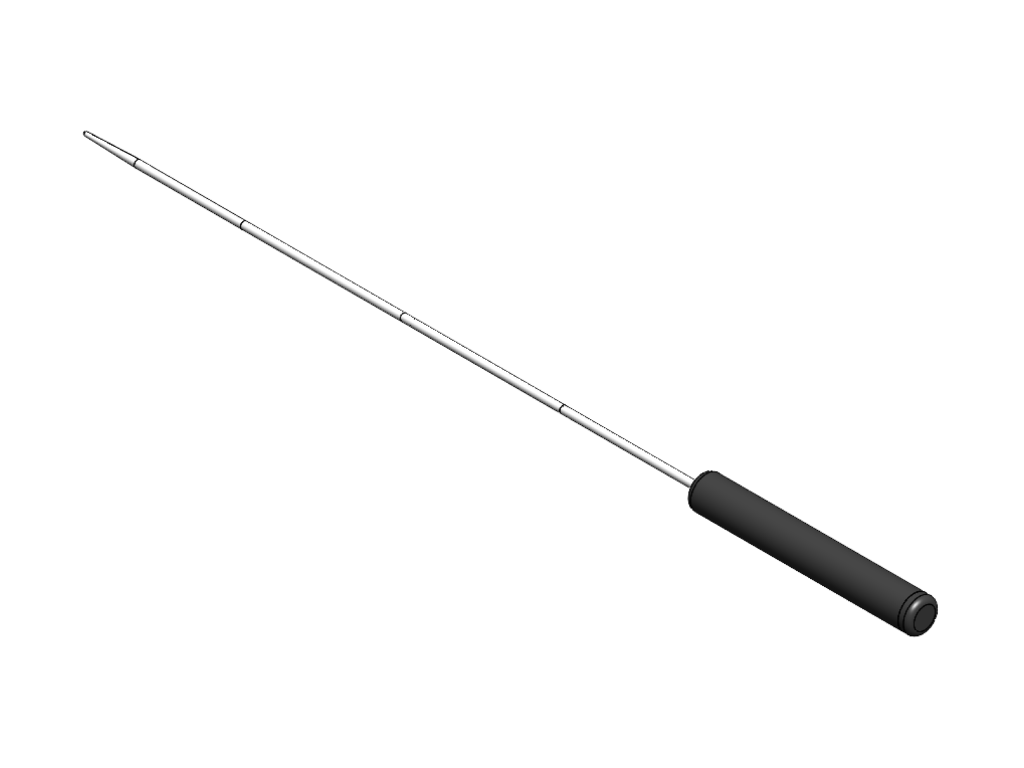

- Prodding tool – lightweight, modular, no metal
- Tripwire Handle – high visibility, no metal
- Flexi Clips – to integrate standard and mini chem-lights with kiT-X markers
- Powder Marking Bottles
- Spray Paint

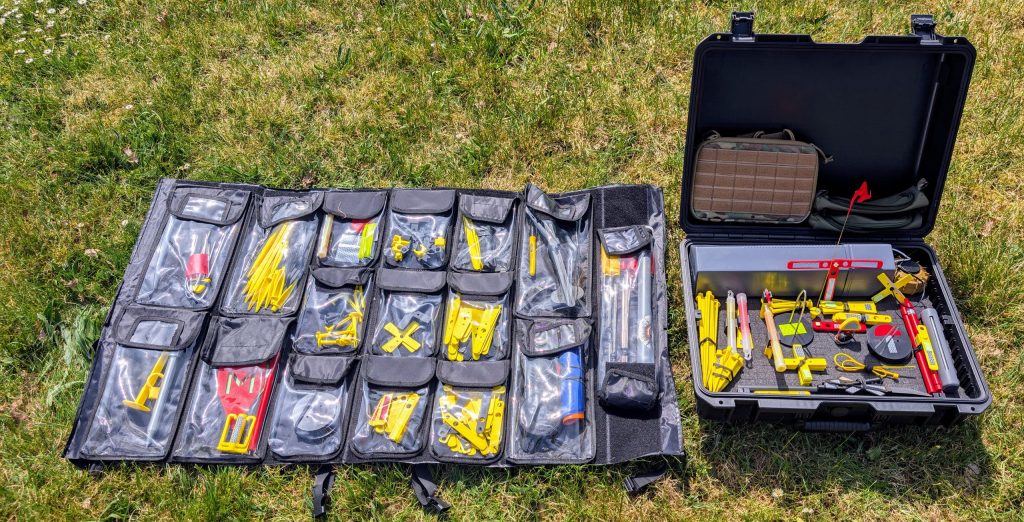

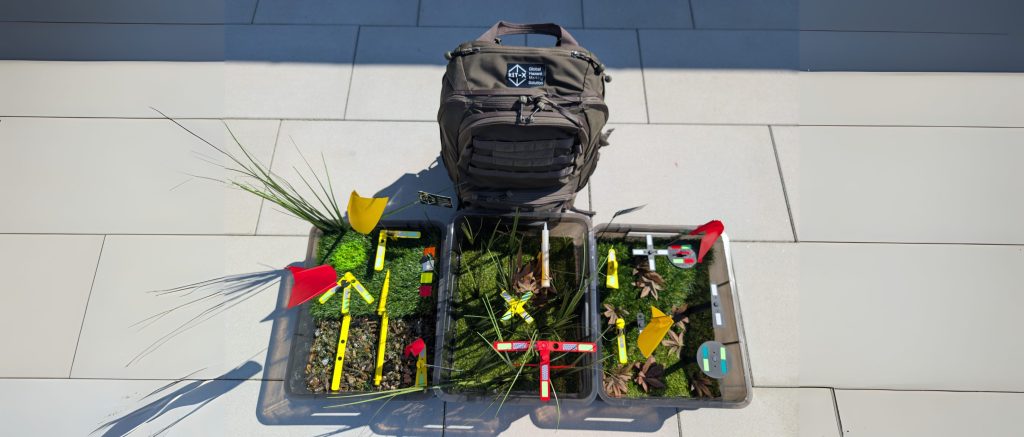

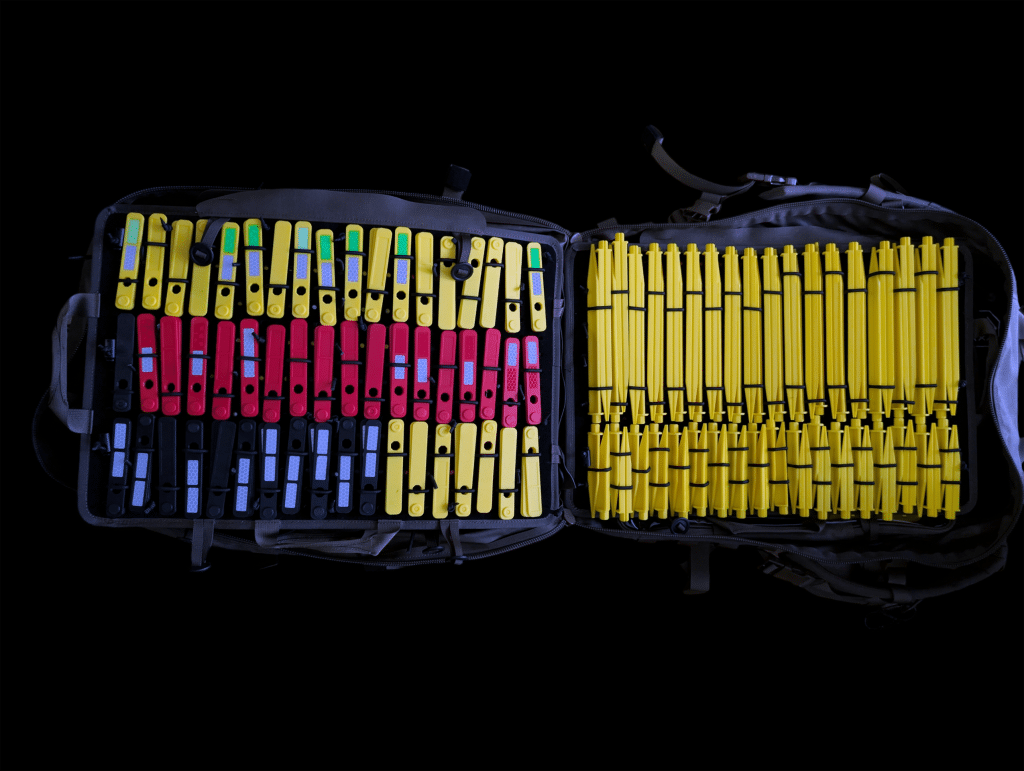

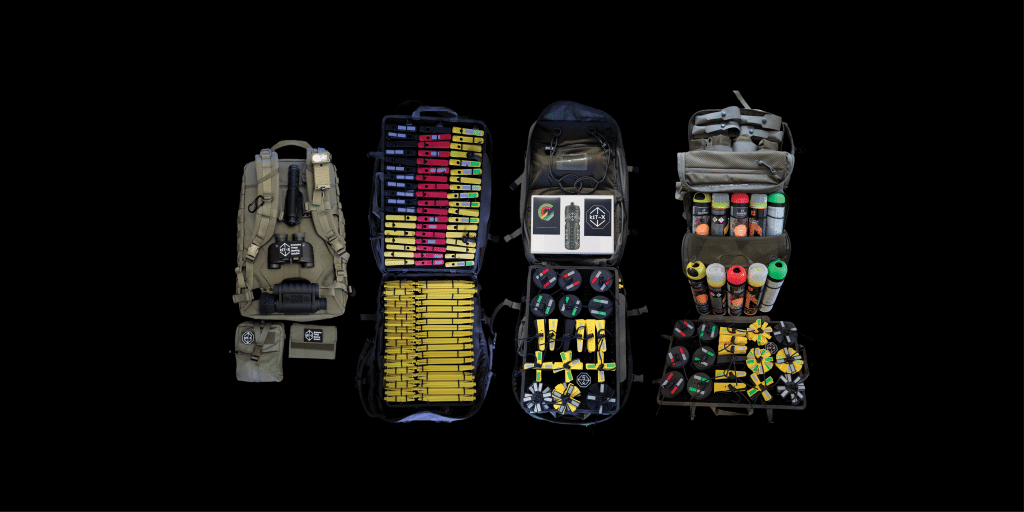

kiT-X Capability Kits
The KiT-X capability kits are advanced solutions refined through operational experience, user feedback, and expert analysis from Alford Counter Threat Advisors. These kits address a critical systematic gap in the ownership of explosive threat and hazard marking.
KiT-X is modular and scalable, enabling customers to customise their capabilities based on specific roles, threats, and terrains, rather than relying on a one-size-fits-all approach. Alford Technologies further supports this customisation process through a subject matter expert (SME) needs analysis to clarify the mission profile, user requirements, and marking objectives.
In practice, carrying systems may need minor adjustments for large orders. Additionally, marking strategies can be tailored for both non-explosive hazards and explosive threats. This flexibility supports broader requirements, such as use by security services, evidence marking, and general hazard identification, all while maintaining a common, interoperable kiT-X visual language.
Capability kits include:
Personal | FAER (Find, Avoid, Extract, Recover) | Vehicle | Specialist | TAC
Counter Threat Search and Mobility Training
In addition to KiT-X, we provide comprehensive Counter Threat Search and Mobility Training aligned with the Alford Counter Threat Model. This integrated system ensures that teams are fully equipped not only with advanced tools but also with the tactical mindset needed to operate safely and effectively in high-risk environments.
Under the Alford Counter Threat Model, we guide you through the following:
Plan iT – Using the proprietary GO-Ci© threat assessment methodology
Find iT – Through enhanced threat recognition and advanced equipment support
Mark iT – With KiT-X for precise threat identification
Avoid iT – Leveraging KiT-X capabilities for tactical evasion
Destroy / Neutralise iT – Through specialised Alford products and solutions
This approach delivers a comprehensive toolkit for full-spectrum survivability and mobility, equipping your personnel to anticipate, respond to, and successfully manage high-risk threats.
Modular Marking for Modern Threats
